Operating voltage: 15 to 32 Vdc peak Current consumption: Stand by current: 200 µA @ 24 Vdc LED current: 7 mA @ 24 Vdc (“ON”) Terminals: SEMS screws with clamping plates for up to 2.5 mm2 (13 AWG) wire

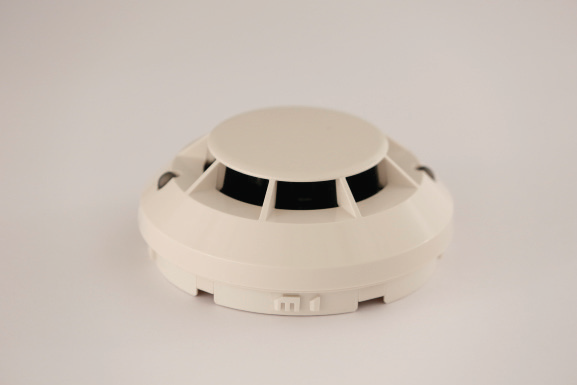

The Morley-IAS MI-PSE (optical) and MI-ISE (ionisation) are analogue, addressable, low-profile smoke detectors designed for the ZX series intelligent multi protocol fire alarm control panels. Because the MI-PSE and MI-ISE are analogue addressable, the control panel can provide the operator with a pinpoint description of where the fire is located. The control panel is capable of not only knowing the detector’s location but exactly how much smoke is in the chamber of the detector.
